APC 2kVA/1600W Easy UPS On-Line SRV RM 120V with Rail Kit

$175,000

SKU: SRV2KRARK Categories: Power, Power Protection Tags: 120V, 1600w, 2kva, APC, easy, Kit, Line, On, Rail, RM, SRV, ups, with

Description
Specifications4 5-15R C13

Description

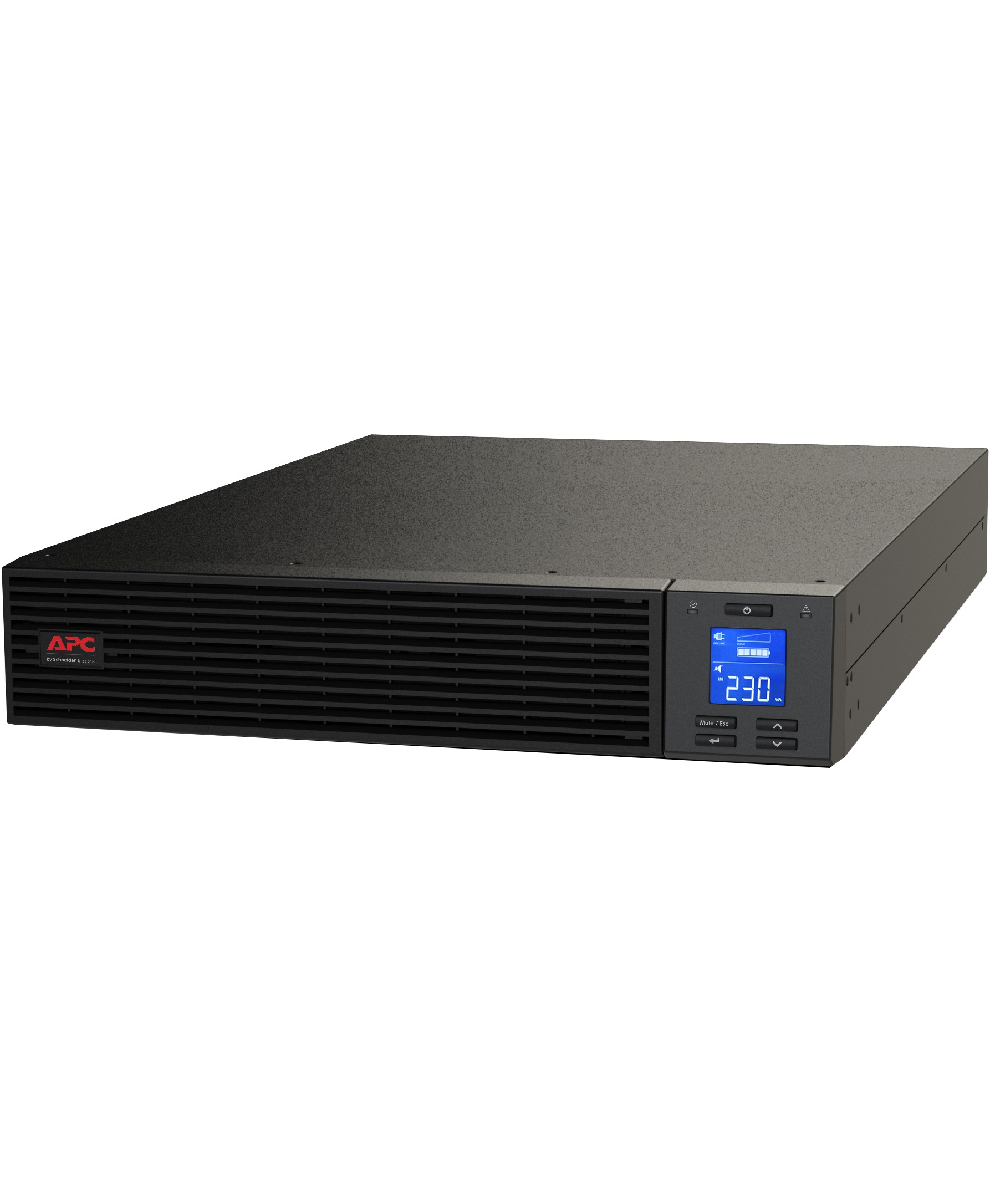

APC 2kVA/1600W Easy UPS On-Line SRV RM 120V with Rail Kit

2KVA/1600W Double-Conversion Online Pure Sine Wave 2RU Rackmount UPS

High operating efficiency in energy-saving ECO mode

Longer battery life with smart temperature-compensated charging

Easy-to-read LCD interface for detailed and accurate UPS status information

This APC Easy UPS, single-phase, is designed for IT professionals or network administrators to maintain uptime and business continuity. This 3=2 kVA online, double-conversion, 2U rack-mount UPS provides pure sine wave power to support critical electronics during power outages. The SRV comes with a NEMA L5-30P input, six NEMA 5-20R outlets, and one NEMA L5-30R outlet. The online UPS has a smart card slot for the optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based monitoring and management of the UPS. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. Built-in automatic and manual bypass provides continuous power to the load even if an internal UPS fault or error is detected. The SRV UPS is compatible with the APCRBCV202 replacement battery cartridge. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunications, and healthcare IT.

APC 3kVA/2400W Easy UPS On-Line SRV RM 120V with Rail Kit

Specifications4 5-15R C13

Main input voltage	120 V AC 1 phase
Product or Component Type	Uninterruptible power supply (UPS) ((*))
Other input voltage	110 V 115 V
Main output voltage	120 V AC 1 phase
Other output voltage	110 V 115 V
nominal power in W	1600 W
rated power in VA	2000 VA
Input connection type	5-15P 5-20P
output connection type	4 5-15R C13
rack unit number	2U
cable length	1.50 m
number of cables	1
provided equipment	1 USB Cable 1 RS-232 Configuration Cable 1 Rack-mount Brackets 1 Rack-mount Support Rails User Manual
product range	Easy UPS On-Line

Complementary
Battery type	Lead-acid internal included
UPS connectivity	Serial port USB port Available expansion slot
mounting mode	Rack mounted with kit included

Battery Type	Lead-acid battery
battery voltage	48V
Extendable duration	0
Pre-installed batteries	0
Free battery slots	0
Typical recharge time	4 H

maximum execution time	4 min
Number of filled power module slots	0
Number of slots without power module	0
redundant	No

Physical
Color	Black - cable type: RAL 7010
Height	86 mm
Broad	437 mm
Depth	462 mm
product weight	18.2 kg
Mounting Location	Frontal
mounting preference	Low
mounting type	Rack mounted
USB compatible	Forks
mounting position	Horizontal

Entrance
spreader bars	55...150 V In= 1250 A 85...150 V full load
Assigned frequency of employment	40-70 Hz auto-detection

Exit
Maximum configurable power in VA	2000 VA
Maximum configurable power (watts)	1600 W
output frequency	50/60 Hz +/- 3 Hz synchronized to mains power grid
harmonic distortion	3%
Topology	Double conversion online
Waveform type	Sine wave
the screwdriver slot	88% - cable type: full charge)
type of derivation	Internal deviation (automatic and manual)
crest factor ((*))	3:1

Accordance
Product Certifications	UL 1779
rules	FCC Part 15 class A CSA Standard C22.2 No. 107.3-06

Environmental
ambient operating temperature	0…40 °C
relative humidity	0…95% non-condensing
maximum operating altitude	0...3000 m
ambient storage temperature	-20…50 °C
Storage relative humidity	0…95% non-condensing
storage altitude	0…15000 m
acoustic level	50 dba
heat dissipation	745 Btu/h
IP protection rating	IP20
