Description

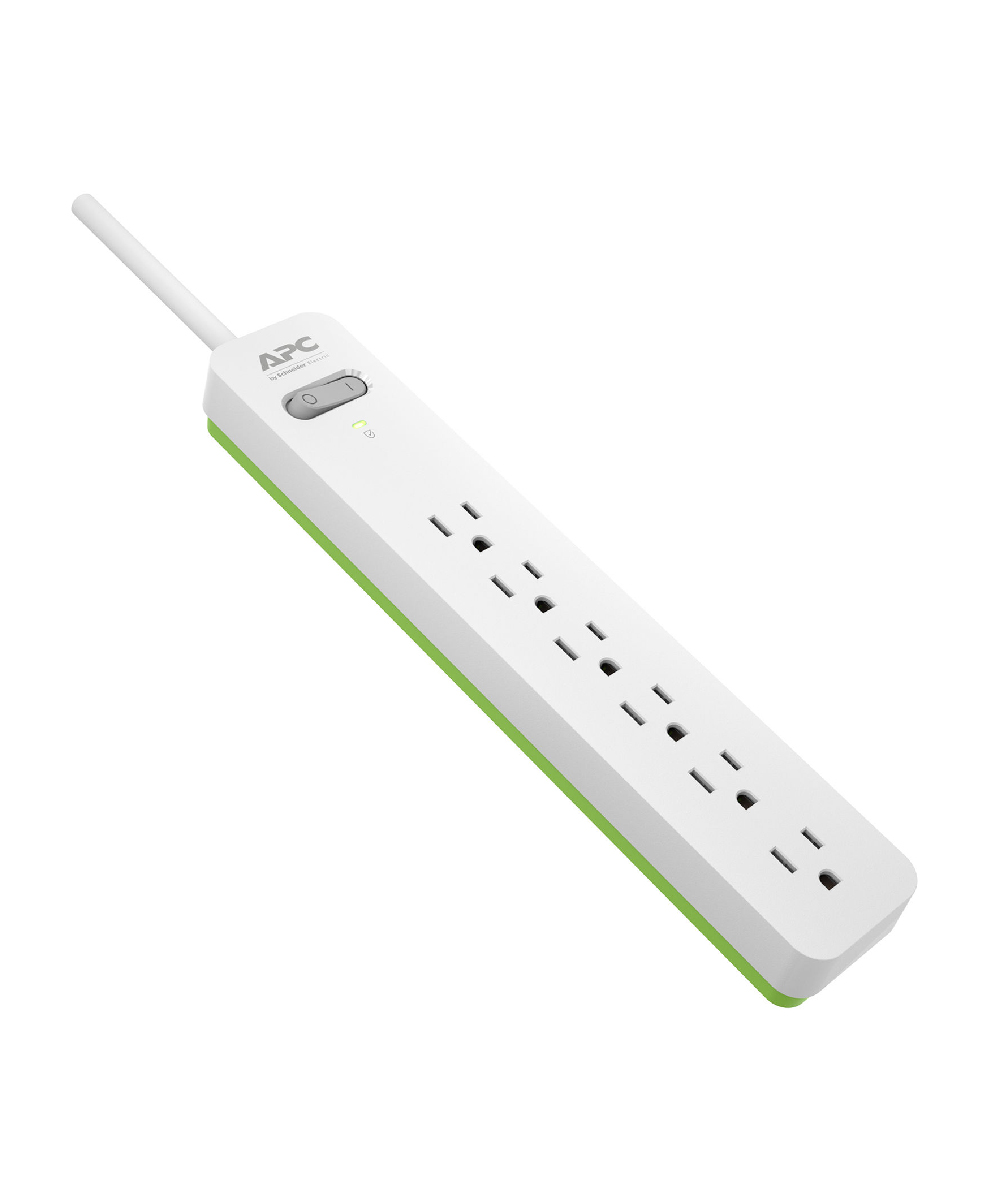

APC Essential SurgeArrest PE66W 6 Outlets, 6 Foot Cord, 120V

Specifications
Overview

Main Input Voltage
120 V
Input Connection Type
NEMA 5-15P
Cable length
6 ft (1.83 m)
Number of cables
1
Provided equipment
User Manual
Physical
Color
Green
White
Height
1.18 in (3 cm)
Width
2.05 in (5.2 cm)
Depth
11.02 in (28 cm)
Net Weight
1.10 lb(US) (0.5 kg)
Mounting preference
No preference
Mounting Mode
Rack-mounted
Input
Maximum Line Current per phase
15 A
Input Frequency
50/60 Hz
Maximum Input Current per Phase
15 A
Switching current capacity
15 A
Output
Number of power socket outlets
6
Outlet standard
NEMA L5-15R
Conformance
UL 1449 TVSS Rating
500
Product Certifications
MET Canada
MET USA
Standards
UL 1363
UL 1449
Equipment protection policy
Lifetime : $50000
Environmental
Ambient Air Temperature for Operation
32…104 °F (0…40 °C)
Relative Humidity
0…95 % non-condensing
Operating altitude
0…10000 ft
Ambient Air Temperature for Storage
5…113 °F (-15…45 °C)
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0…50000 ft (0.00…15240.00 m)
Surge Protection and Filtering
NM Surge Response Time (ns)
1 ns common mode
Common mode rejection
40 dB
Peak current
48 kAcommon mode
24 kAnormal mode
Surge energy rating
1080 J
Ordering and shipping details
GTIN
731304328889
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.57 in (4 cm)
Package 1 Width
12.20 in (31 cm)
Package 1 Length
4.53 in (11.5 cm)
Package 1 Weight
1.28 lb(US) (0.58 kg)
SCC14
10731304328886

APC Essential SurgeArrest PE66W 6 Outlets, 6 Foot Cord, 120V
