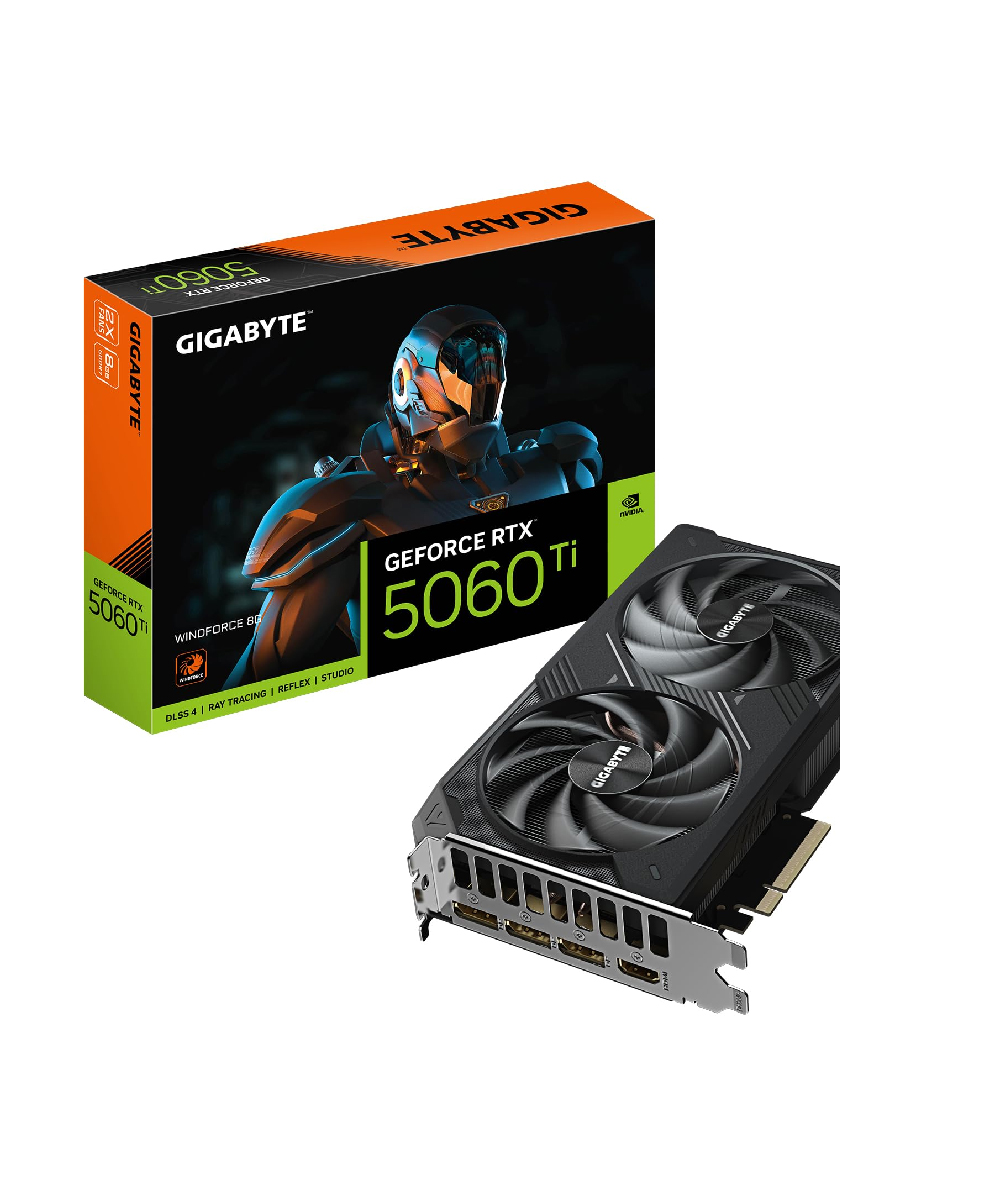

Gigabyte GeForce RTX™ 5060 Ti WINDFORCE 8G

$110,000

Add to Wishlist
SKU: GV-N506TWF2-8GD Categories: , Tags: , , , , , ,

Description

Gigabyte GeForce RTX™ 5060 Ti WINDFORCE 8G

FEATURES

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX™ 5060 Ti
  • Integrated with 8GB GDDR7 128bit memory interface
  • WINDFORCE cooling system
    • Hawk fan
    • Server-grade Thermal conductive gel
  • Reinforced structure

CORE CLOCK

2572 MHz

FEATURES

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX™ 5060 Ti
  • Integrated with 8GB GDDR7 128bit memory interface
  • WINDFORCE cooling system
    • Hawk fan
    • Server-grade Thermal conductive gel
  • Reinforced structure

CORE CLOCK

2572 MHz

AI-Enhanced Graphics and Performance

NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness

NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics

Full ray tracing with neural rendering

Digital Humans and AI Assistants

NVIDIA ACE

Accelerate Your Creativity

NVIDIA Studio creator tools and technology

Enhance Any Video with AI

NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability

NVIDIA app with Game Ready and Studio Drivers

The Ultimate Gaming Display Technologies

NVIDIA G-SYNC

WINDFORCE
COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

Gigabyte GeForce RTX™ 5060 Ti WINDFORCE 8G

Specifications

  • Graphics Processing
    GeForce RTX™ 5060 Ti
  • Core Clock
    2572 MHz
  • CUDA® Cores
    4608
  • Memory Clock
    28 Gbps
  • Memory Size
    8 GB
  • Memory Type
    GDDR7
  • Memory Bus
    128 bit
  • Card Bus
    PCI-E 5.0
  • Digital max resolution
    7680x4320
  • Multi-view
    4
  • Card size
    L=208 W=120 H=40 mm
  • PCB Form
    ATX
  • DirectX
    DirectX 12 API
  • OpenGL
    4.6
  • Recommended PSU
    650W
  • Power Connectors
    8 *1
  • Output
    DisplayPort 2.1b *3 HDMI 2.1b *1Pin
  • Accessories
    Quick guide
