Description

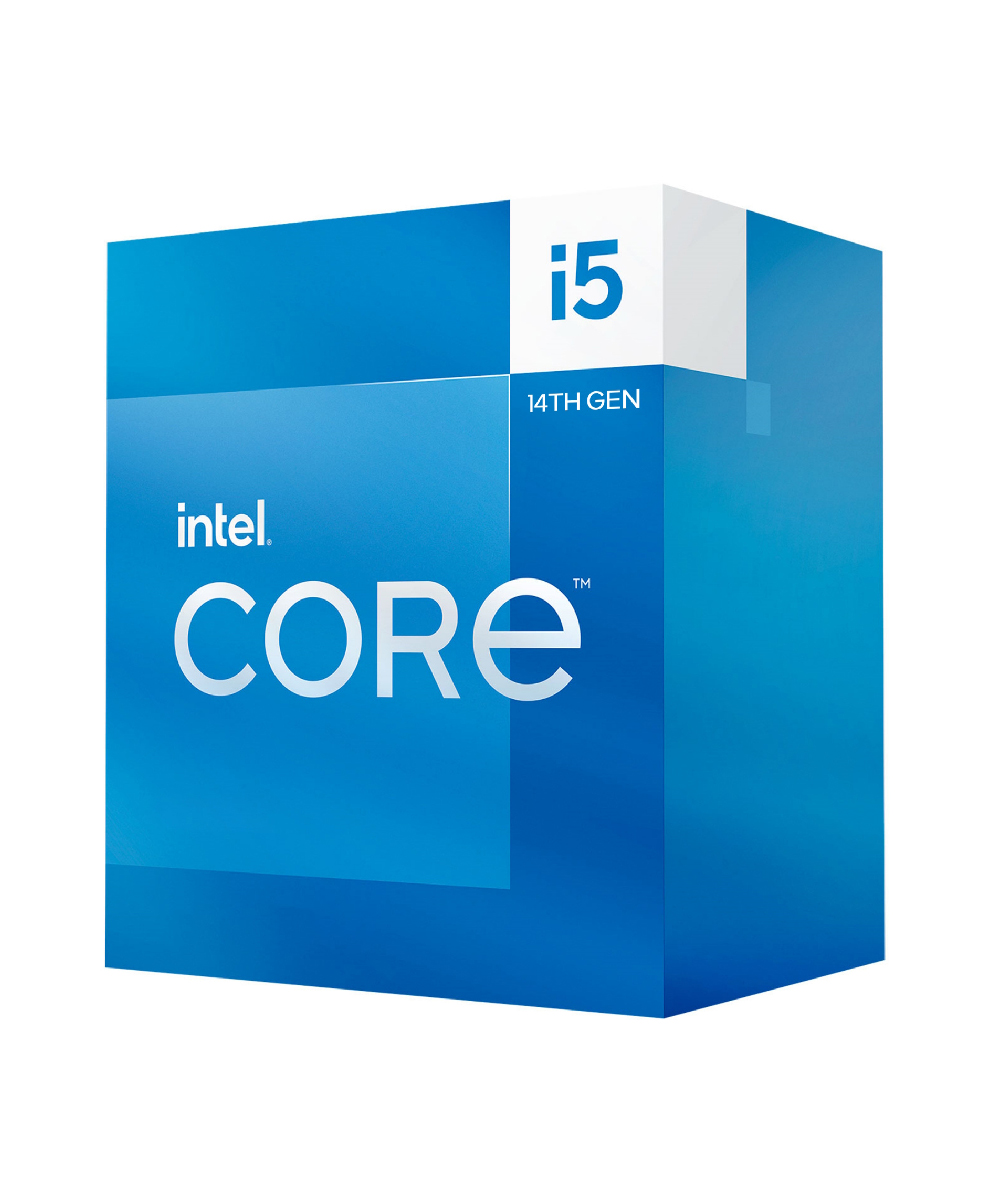

Intel Core i5 14400 Processor 20M Cache, up to 4.70 GHz
Essentials
Product CollectionIntel® Core™ i5 processors (14th gen)
Code NameProducts formerly Raptor Lake
Vertical SegmentDesktop
Processor Number i5-14400
Lithography Intel 7
CPU Specifications
Total Cores 10
# of Performance-cores6
# of Efficient-cores4
Total Threads 16
Max Turbo Frequency 4.7 GHz
Performance-core Max Turbo Frequency 4.7 GHz
Efficient-core Max Turbo Frequency 3.5 GHz
Performance-core Base Frequency 2.5 GHz
Efficient-core Base Frequency 1.8 GHz
Cache 20 MB Intel® Smart Cache
Total L2 Cache9.5 MB
Processor Base Power 65 W
Maximum Turbo Power 148 W
Supplemental Information
- Marketing StatusLaunched
Launch Date Q1’24
Embedded Options Available Yes
Use Conditions PC/Client/Tablet
DatasheetView now -
Memory Specifications
- Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s -
GPU Specifications
- GPU Name‡ Intel® UHD Graphics 730
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 24
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3.0
Multi-Format Codec Engines 1
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡4
Device ID0x4682/0xA782
Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size45.0 mm x 37.5 mm
Max Operating Temperature 100 °C
Advanced Technologies
Intel® Volume Management Device (VMD) Yes
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡ Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS GuardYes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel Core i5 14400 Processor 20M Cache, up to 4.70 GHz
