General Specifications

Model

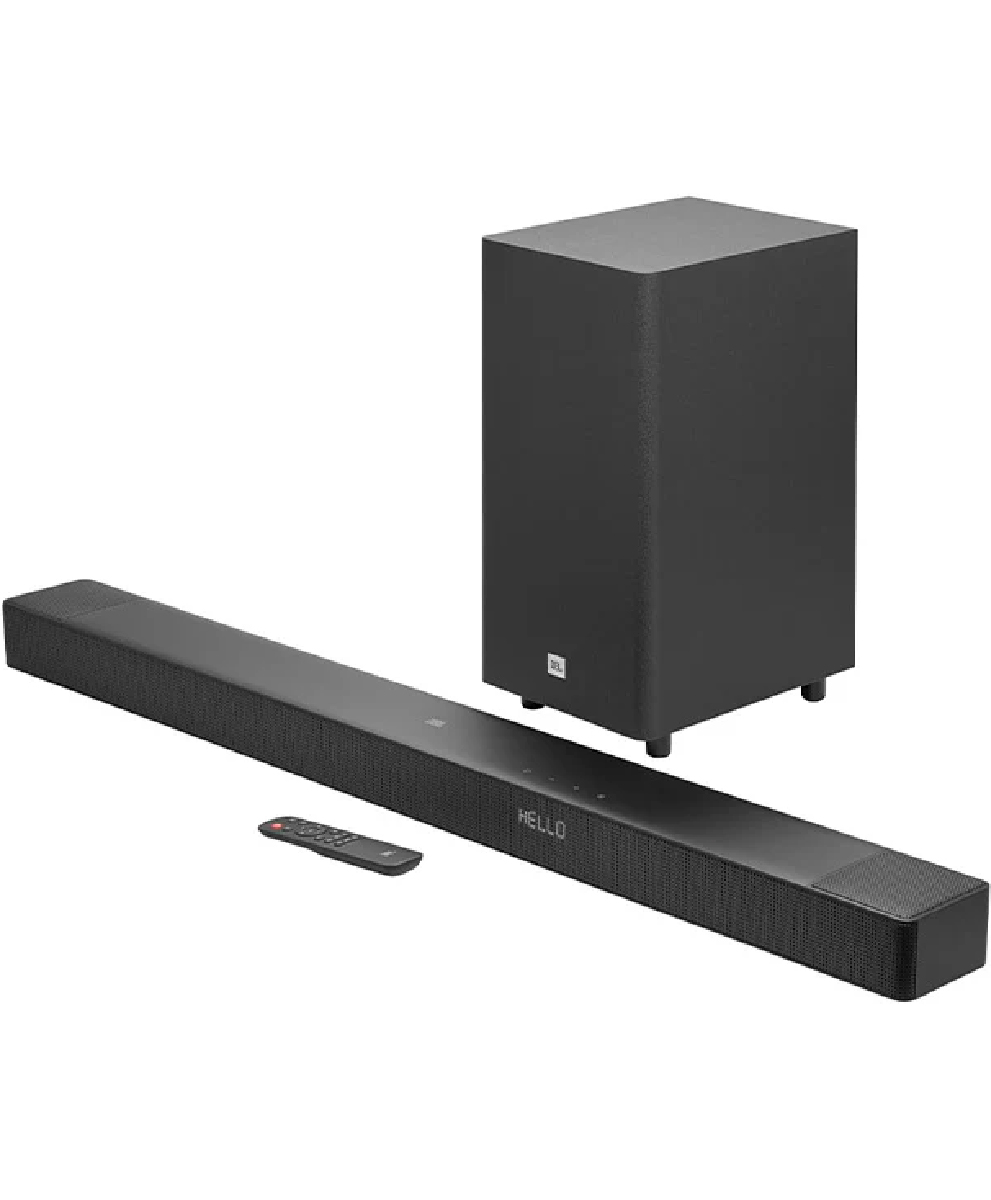

CINEMA SB595 (soundbar unit) CINEMA SB595 SUB (subwoofer unit)

Sound system

3.1.2 channel

Power supply

100 - 240V AC, ~ 50/60Hz

Total speaker power output (Max @THD 1%)

440W

Soundbar output power (Max @THD 1%)

200W

Subwoofer output power (Max. @THD 1%)

240W

Soundbar transducer

3x (48 x 90) mm racetrack drivers + 2x 1.5" tweeters+ 2x 2" up-firing drivers

Subwoofer transducer

6.5” (165 mm), wireless subwoofer

Audio Specifications

Frequency response

40Hz-20kHz (-10dB)

Audio inputs

1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D)

1000 x 67 x 97 mm / 39.4" x 2.6" x 3.8"

Subwoofer dimensions (W x H x D)

200 x 405 x 250 mm / 7.9" x 15.9" x 9.9"

Soundbar weight

3.2 kg / 7.1 lbs

Subwoofer weight

5.9 kg / 13 lbs

Packaging dimensions (W x H x D)

1075 x 235 x 395 mm / 42.3" x 9.3" x 15.6"

Packaging Weight

11.3 kg / 24.9 lbs

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file formats

mp3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

MP3 bitrate 32 kbps - 448 kbps; MPEG 1 Layer 2

MPEG 1 Layer 1

Bluetooth version

5.4

Bluetooth profile

A2DP 1.3, AVRCP 1.6

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth Max. transmitting power

<10 dBm (EIRP)

Bluetooth modulation

GFSK,π/4 DQPSK,8DPSK

2.4G wireless transmitter frequency range:2400 MHz - 2483.5 MHZ

2.4G wireless transmitter power

＜10dBm (EIRP）

2.4G wireless modulation

GFSK

Notification

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright©. 2012-2024 Dolby Laboratories. All rights reserved.

Video Specifications

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

1x Main soundbar

1x Wireless subwoofer

Remote control with 2 x batteries

Power cords (up to 6pcs depending on region SKUs)

1 x HDMI cable

2 x wall-mount bracket with screws

Quick start guide

Safety instruction and Warranty card

Wall mount template
